Abstract
This paper presents experience gathered through the
implementation of a CORBA-based localization system for an office
environment. The localization system simultaneously preserves the
fine-grained object-oriented structure of the system and achieves
efficient performance. The presented study is a practical lesson
concerning the implementation of a scalable, information-dissemination
system. The key idea is to represent a large observable collection of
objects by a repository that provides access to them both as
individual CORBA objects and as data records. The proper use of this
duality may have a substantial impact on the overall system

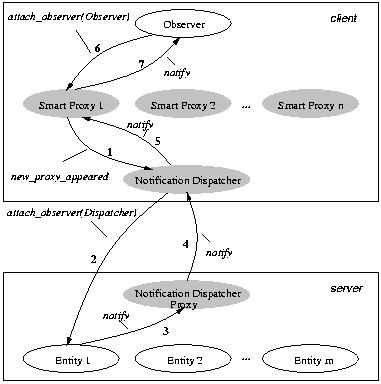

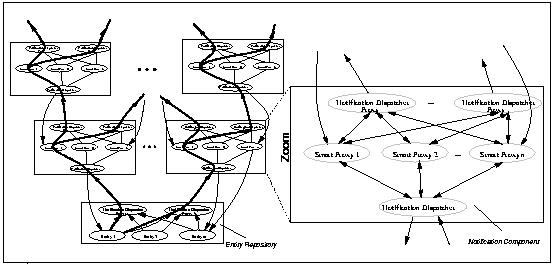

performance. The repository is equipped with a scalable notification
mechanism built around the concepts of a notification dispatcher and a
notification tree. Fundamental features of the proposed solution are
illustrated by a performance study and a representative application.
Keywords: CORBA, ORL's ABS, Scalability, Components
1 Introduction
Many existing information systems may be classified as
information-dissemination applications [4].
Such systems
deliver information about changes to a subset of data to a group of
interested users. New approaches to the construction of dissemination
systems, namely object-orientation and distribution, introduce the
problem of system scalability. There have been few attempts to build
such systems using these technologies from scratch, and there is, in
general, no answer to the scalability problem. One of the most crucial
design decisions for such a system is the choice of abstraction level
for objects composing the system. For example, when building a
CORBA-based system disseminating share prices, one must decide whether
individual share prices will be represented as CORBA objects or
not. Generally, this is a question of how to map objects of the system
model into CORBA objects. Until now, there is a common belief that a
CORBA-based system constructed from a huge number of CORBA objects is
inherently inefficient. The solution presented in this paper refutes
this belief and proposes a template CORBA repository component with
light-weight mechanisms for notification, persistence and security.
This repository component combines and refines some ideas that have
recently appeared in component oriented software environments such as
Java Beans [19], [20],
San Francisco Components [3],
and CORBA Components (proposed by Iona Ltd and others)
[16]. The major innovations of this
repository are a dual form of access to repository entities that is by
value or by CORBA references, and a scalable notification mechanism
with built in smart proxies. Finally, the idea of dynamic
attributes [13] has been exploited and three different
types of repository component have been proposed.
The structure of the paper is as follows. In Section 2,
the Active Badge next generation (ABng) project, the context of this
study, is described. The repository component template is defined in
Section 3. Implementation issues concerning this
component are described in Section 4. Next, in
Section 5, a performance evaluation
study of the system's scalability is reported and discussed.
Section 6
presents a basic application that uses information gathered by an ABng
system. The paper ends with conclusions.
2 The Active Badge next generation project
The system, called Active Badges, was originally invented and
developed at Olivetti Research Laboratory, Cambridge,
UK [6] in 1990-92. It uses a hardware infrastructure
whose key components are infra-red sensors, installed in fixed positions
within a building, and infra-red emitters (active badges) that
are worn by people or attached to equipment. Sensors are connected by
a wired network which provides a communication path to the controlling
device, called a poller, and distributes low-voltage power. A poller
is implemented as a PC or a workstation with active sensor control
software. An active badge periodically transmits an infra-red message
containing a globally unique code (a badge identifier) using the
defined data link layer protocol [2]. Messages are
received and queued by sensors. A poller periodically polls sensors,
and retrieves badge messages from sensor queues. Each badge message,
including an identifier of the sensor which received the message, is
forwarded to the software part of the Active Badge system. The
software layer maintains a database that maps sensors to places in
which sensors are installed and badges to users wearing these badges
and to pieces of equipment to which badges are attached. Using this
data, the system can infer where users or pieces of equipment are
currently located. The information about the current location of users
and equipment is provided to various applications, such as
presentation tools which display location data or applications which
use location data to control the users' environments. The software for
the original Active Badge system developed at ORL used the
ANSAWare [1] distributed environment.
2.1 Goals of ABng project
The ABng project focussed on the redevelopment of the Active Badge
system software such that the following requirements are satisfied:
- the system is flexible and reconfigurable;
- the system separates the details of location data gathering from the
application layer;
- the system provides location data filtering;
- the system ensures privacy of location data and security;
- the system enables the construction of location-aware applications.
To satisfy the first requirement, ABng uses modern
component and object-oriented technologies. The system was developed using
CORBA-compliant environments: Orbix [7] or, alternatively,
OmniORB [12] and OrbixWeb [11].
It is based on an object model in which all logical and physical elements of
the Active Badge system (users, locations, sensors, badges, etc.) are
represented as CORBA objects.
The system has a layered architecture which hides details of gathering
location data. This makes it possible to replace a localization method
based on infra-red sensors and emitters by another one. In ABng,
location data are represented using abstract notions of location
and locatable objects rather than in terms of sensors and
badges. A location is a part of an environment obtained by
partitioning the space according to an arbitrary, user-defined
rule. Typically, an office space can be divided into buildings,
floors, rooms, etc. A locatable is an object which can be observed by
the system and whose location changes within the monitored
environment. A locatable can be a person or a piece of equipment, such
as a computer, a printer or a book.
The basic ABng concept is a view, which is a collection of
location and locatable objects, i.e. it represents a part of the
environment space and a subset of objects that can be localized within
this part. The localization precision of a view's locatables is
determined by the size of locations belonging to the view. Within a
system, a number of view objects can exist, each of which can hold
information concerning the current locations of users or equipment
belonging to different groups and provided at different levels of
abstraction with different precision.
The concepts of locations, locatables and views are crucial for data
filtering and protection of privacy of location data. Every
application can individually decide which view and which locations or
locatables, contained in the view, it is willing to observe. It can
subscribe to interesting objects and, as a consequence, receive data
related to these objects. Associated with every view in the system is
a list of users who can access that view. As a result, only users
found in the associated list have access to location data as well as
to other attributes of locations and locatables contained in a
particular view.
The ABng supports the Wonder Room location-aware user
environment over the location system. This environment consists of a
number of applications which control various elements of the users'
equipment. Examples of such applications are redirection of phone
calls to the phone nearest the called individual or setting parameters
of various home appliances (such as an air-conditioner, TV sets, VCRs,
lights) according to the preference of users located in the
neighborhood of these appliances. Such applications may be used for
personalization of each user's equipment.
2.2 Design considerations
After the analysis of the desired functionality of the ABng system,
many kinds of entities have been singled out which have to be
represented in software. These entities can be divided into two main
categories:
- Those closely related to Active Badge System configuration, such as
Sensor and Badge on the lowest level, and
ABng_Location_Description and Badge_Holder above it,
- Those describing the office environment in which the Active Badge
System was installed such as User, Equipment,
Location_Type, Location and View, etc.
These entities not only encapsulate their state but also possess more
or less complex functionality. Some examples are: a request to play
a particular sound could be sent to a badge; a particular instance of
equipment, such as an air conditioner in a given room, could be
requested to change its state. This last functionality is possible
thanks to the integration of the ABng system with an infra-red
controlling system. Generally, it is assumed that functionality linked
with a given type of entity will evolve and be significantly extended
in the future.
There are numerous relationships between ABng entities. The state of a
particular entity may depend upon or be composed of the states of
other entities. Thus, representation of the entire state of such an
entity requires that information from many other entities be
gathered. The ABng layered architecture requires the separation of
location descriptions, such as a room or floor, from the entity
encapsulating a set of sensors installed there. Combining these two
entities into one will make evolution or replacement of the current
sensors with other localization capabilities impossible.
Additionally, an entity needs to be immediately informed about state
changes of entities it depends upon, permitting it to modify its
functionality appropriately. For instance, when a sensor is replaced
or added to a particular room, related ABng_Location_Descriptions and
Views entities have to be informed, which will cause a change in
the processing of sightings. Entity state changes can be caused by
several sources:
- a system administrator, when updating repositories with data describing
the ABng configuration and office environment - such changes are
relatively rare and not bursty,
- the movement of a locatable object - such changes usually occur
very frequently,
- changes in the state of equipment - such changes may occur
frequently.
Changes must be propagated not only within the system but also to
interested observers. Thus, an appropriate mechanism for managing sets
of observers and their interests is necessary.
Due to all these reasons, each of the above-mentioned entities appears
to be complex enough to justify its representation as a separate CORBA
object. This results in a large number of independent CORBA objects in
a deployed ABng system supporting even a moderate number of users.
3 Component template
After reviewing the previous Active Badge system, we factored the
following into the ABng system:
- General templates for each entity, as well as for a repository,
were designed,
- These templates support the implementation of each entity
eliminating the overhead related to representing each entity as a
separate CORBA object,
- A light-weight notification mechanism for repository clients was
designed.
In the ABng, three types of entities, and as a result, three types of
entity interfaces have been derived, with:
- static attributes. Most ABng entities have a fixed and
relatively small number of attributes. Such entities are accessed via
interfaces, in which each entity attribute is represented by a
corresponding IDL attribute.
- dynamic attributes. Another approach is to treat an entity
as a collection of attributes of arbitrary types and to provide an
access to them via an appropriate interface. Such an interface offers
a pair of accessor operations to set and retrieve the value of a
single attribute in which an attribute is referred to by its name and
value is encoded using the IDL any type. The interface permits
the retrieval of all attributes as a list. This approach is an
application of the Dynamic Attribute design
pattern [13]. This type of an interface is provided by
entities which have many attributes or these attributes are different
for individual entity instances. An ABng example of such an entity is
the Location_Description object, which describes a piece of an
office space, such as a floor, a room or a building. These real-world
objects are inherently different, and it is impossible to design a
uniform set of attributes for them.
- hybrid attributes. This type of an interface explicitly
defines those attributes which are common for all objects representing
entities. Additionally, it uses the Dynamic Attribute paradigm
to provide access to object-specific attributes. An example of an ABng
object providing such an interface is Equipment, an instance of
which describes a piece of office equipment. All kinds of equipment
have a set of common attributes, such as a name, a vendor name, etc.;
these have been defined as explicit attributes.
For every type of interface a corresponding template was
designed. Below, the template for interfaces with static attributes is
described in detail as an example.
The template of an entity interface, shown below,
defines a set of attributes: attribute1, ... ,
attributeN. It also inherits from the Entity_Comander
interface which defines its specific functionality.
interface Entity: Entity_Observed,
Entity_Commander {
struct Description {
Type1 attribute1;
// ...
TypeN attributeN;
};
typedef sequence<Description> Descriptions;
struct Value_Description {
Type1::Value_Description attribute1;
// ...
TypeN::Value_Description attributeN;
};
typedef sequence<Value_Description>
Value_Descriptions;
struct Pattern {
boolean is_any;
Type1::Pattern attribute1_pattern;
// ...
TypeN::Pattern attributeN_pattern;
};
readonly attribute Repository_Item_Id item_id;
readonly attribute Description descr;
readonly attribute Type1 attribute1;
// ...
readonly attribute TypeN attributeN;
}
Each entity possesses a unique identifier (item_id) inside its
repository, which can be used by repository clients to refer to
objects. This is an alternative to using object references for this
purpose.
Besides, every entity inherits from the Entity_Observed
interface which enables other objects to register their interest in
changes to an entity's state. When the state of an entity changes, any
registered parties are informed about it.
The second uniform feature is the descr attribute of the
Description type, which is a structure possessing fields corresponding
to the attributes of a given entity. The structure is used to obtain
the entire state of the entity in just one request. This feature was
mainly designed for use by the notification mechanism based on smart
proxies, described in the next section. A smart proxy on the client
side can retrieve the whole state of the entity when it is created and
then serve a local request using cached data. It will also retrieve
the whole state if the cache is invalidated by the notification
mechanism, which is described later on.
The next common element is the definition of the
Value_Description structure. Like Description it has a field
for every entity attribute but the type of this field is either the
type of a corresponding attribute, providing it is not an object
reference, or the Value_Description structure from the entity
referenced by this attribute. The purpose of this approach is to
enable the return of the entity state as a set of already collected
data without any references to outside objects.
Finally, there is the Pattern structure which is built in a
recursive way. It contains Pattern structures for simpler data
types. The is_any field denotes if the value field is
meaningful or not. The Pattern structure is used to specify
searching criteria for the given entity type.
The templates for interfaces with dynamic or hybrid attributes (not
presented here) are very similar to that for static attributes. In a
dynamic interface the only attribute is a sequence of name/value pairs
and there are two additional methods to set and retrieve a single
value. An interface with hybrid attributes has both explicit
attributes and a list of name/value pairs accompanied by the accessor
operations.
Objects built according to any of the three templates are stored in
repositories which also possess a generic interface, presented below:
interface Entity_Rep : Entity_Rep_Observed {
typedef sequence<Entity> Entities;
readonly attribute Entities entity_list;
Entity add(in Entity::Description data_record)
raises(Duplicate_Data_Record);
void update(in Entity object_to_update,
in Entity::Description data_record_pattern)
raises(Unknown_Object_Ref,
Duplicate_Data_Record);
void remove(in Entity object_to_remove)
raises(Unknown_Object_Ref);
Entities find(
in Entity::Pattern data_record_pattern);
Entity::Value_Descriptions find_values(
in Entity::Pattern data_record_pattern);
Entities find_and_attach(
in Entity::Pattern data_record_pattern,
in Observer obs,
out Entity::Descriptions descritions);
}
The operations of a repository are as follows:
- add - creates and adds a new entity to the
repository. The initial state of the created object is determined by
the contents of the Description structure passed as an
argument. This method returns the object reference of the new entity.
- update - replace the state of the entity denoted by
a reference with values stored in the Description structure.
- remove - remove an entity denoted by a reference.
- find - returns a collection of references of those
entities which match the criteria specified in the Pattern
structure passed to the operation.
- find_values - returns a collection of the states of the
entities matching the given criteria. In other words, this
operation returns the matching object by value rather than by
reference.
- find_and_attach - works like the find method but
additionally registers the observer (obs) for all returned
entities in a repository. It also possesses an out parameter by
which the sequence of entity descriptions is returned.
The entity repository interface inherits from the
Entity_Rep_Observed interface, enabling registration of interest in
the arbitrary collection of entities. This facilitates registration of
an observer for a large number of entities. The state of every entity
contained in a repository is made persistent by the persistence
mechanism used in the repository. Access to an entity is guarded by
the security service.
Although the update and remove operations possess an
argument of an object reference type, object references are not
directly used to identify entities that are to be updated or removed,
respectively. In general, one cannot rely upon comparison of two
object references to yield equality. A comparison of two different
object references may yield inequality, even though they may point at
the same object. To avoid this problem, an entity's reference is used
to obtain the entity's unique identifier, which is returned by
invoking the item_id() method and is used for indexing.
4 Implementation of component facilities
Every ABng component offers mechanisms for asynchronous notification
of changes to component attributes for life-cycle control and
security. They are examined below.
4.1 Light-weight notification mechanism
A typical ABng application uses a significant amount of information
encapsulated by a number of ABng objects. To obtain this information
an application interacts with the appropriate ABng objects. To
optimize the performance of these interactions, ABng implements a
caching algorithm -- i.e. Smart Proxy Layer (SPL),
based on the smart proxy mechanism available in Orbix and OrbixWeb. When the
application obtains an entity reference (for instance by executing the
repository's find method), the smart proxy of the entity object is
instantiated within the application's address space and the entity's
attribute values are cached. When the application enquires about an
attribute value, this value is retrieved from the cache and no remote
call is performed.
If a value of an entity attribute changes, all proxies active in
different applications have to be notified about this change. For this
purpose, a notification mechanism based on the Observer [5]
architectural design pattern (also known as Publisher/Subscriber) has
been designed. Every proxy registers itself as an observer of the
entity it represents. Each time an attribute of the entity is updated,
the proxy is notified and marks its cache as invalid. The next query
by the application for an attribute value causes the proxy to contact
the entity and retrieve the whole description. Registering smart
proxies directly within an entity object would be very inefficient,
since for every smart proxy registration a corresponding proxy object
in the server containing the entity would be created. To solve this
problem, a notification dispatching mechanism is employed. This is
depicted in Figure 1 and explained below.
Figure 1: ABng notification mechanism
When a proxy representing the first entity from a given repository is
instantiated within an application, an object, called the
notification dispatcher associated with the repository, is
created. The dispatcher will represent all proxies associated with
entities contained in the given repository and dispatch notification
messages to the proxies. The smart proxy does not directly subscribe
itself to the corresponding entity. Instead, it calls the
notification dispatcher (arrow 1 in Figure 1). The
dispatcher casts the smart proxy reference to the reference of an
ordinary proxy and calls the real stub of the registration method
(attach_observer) passing its own reference as an argument (the
dispatcher has to provide the observer interface). This call results
in a real remote invocation on the entity (arrow 2). If the dispatcher
contacts the entity server for the first time, the dispatcher proxy is
instantiated within the server at the same time. Within the
repository the number of existing dispatcher proxies is equal to the
number of applications which contain proxies observing the
repository's entities. The entity stores a dispatcher reference (a
pointer to a dispatcher proxy) in a registry of its observers.
When the state of an entity changes, the entity notifies all
notification dispatchers via their proxies (arrow 3 and 4). On the
application's side, the dispatcher obtains a reference of the updated
entity, which, in fact, points to the local smart proxy. The
dispatcher forwards notification to the smart proxy (arrow
5). Finally, the proxy marks its cache as invalid.
In addition to smart proxies maintaining caches, a user's application
can also contain ordinary objects which are interested in asynchronous
notification regarding entity updates. This notification is also
performed using the described mechanism. An application object that
wants to be notified about changes to an entity's state calls the
attach_observer operation of the entity of interest (arrow 6). This
call, however, is not transmitted to the entity. It only affects a
local registry of entity observers, which is maintained by the smart
proxy. After the proxy is notified about entity update, it forwards
this notification message to all entity observers contained within the
application (arrow 7).
It should be noted that the above mechanism is completely transparent
to the application. An application which uses this mechanism must be
linked with a library containing smart proxies and dispatchers.
In the general case, it may happen that caches become stale and
applications end up using stale data. There might be several reasons
of such a situation:
- Delay -- updates may be delayed if the processing power or
communication bandwidth of the system are exceeded. Generally, this
can be solved by improving system efficiency of providing more of the
oversubscribed resources. This is not typically a problem in ABng,
however, since changes (e.g. movement of people) occur relatively
rarely.
- Losses - oneway CORBA invocations, which are used in the
implementation of the notification mechanism, do not generally
guarantee request delivery. However, most existing ORBs, including
Orbix and OmniORB used in the ABng system, employ the IIOP protocol
implemented over TCP/IP and ensure reliable request delivery of oneway
calls.
- Inconsistency - a cache coherency problem may occur as cache
refreshing is not simultaneous and atomic. This is a well known
problem [21], which may happen when an application uses
caches in different processes. However, an implementation of a cache
coherency protocol in a distributed CORBA environment would introduce
substantial overhead. The current implementation of the notification
mechanism does not address this problem, since ABng belongs to the
class of applications which require only weak-consistency.
4.2 Persistence
Entity state must survive rebooting of the system. This persistence
can be implemented using different approaches. However, a heavy and
cumbersome mechanism could have a tremendous impact on efficiency and
scalability of the system. In the ABng, two versions of persistence
mechanism are implemented:
- File-based - this primitive mechanism uses a separate
file to store the serialized state of each repository. It is
implemented as coarse-grained, which means that when one of the
entities in the repository is changed then the whole state of the
repository (all entities) is restored in the appropriate file.
- Object Database Object Adapter (ODOA)
- this sophisticated mechanism of
achieving CORBA object persistence uses an object database
[10] to save separate objects as well as
collections of objects. Each repository is a root for a collection of
entities. However, when a particular entity is changed only its state
is updated in the database. The disadvantage of this mechanism is that
a transaction has to be created. The ODOA provided by Iona is only
single-threaded and always opens a heavy-weight update
transaction. The ODOA used in the ABng was obtained from Iona as a
specialization of the Orbix Database Adapter Framework
[9].
Its special features enable multi-threaded implementation
of servers as well as instrumentation of the ODOA during the
compilation of the program, with names of methods (together with
interface names) requiring the creation of update database
transactions. For other methods, light-weight read-only
transactions are created.
The persistence mechanism used in a given repository is determined
during compilation (the possibility of postponing this to execution
time is being investigated). There is no restriction that all
repositories in the running system have to use the same persistence
mechanism.
4.3 Security
Access to entities is granted based on the chosen view; thus it
effects many other objects in other repositories associated with the
given View object. The authorization server connected with a
View_Manager automatically grants a user access to all data
about locations and locatables of the view. This authorization data is
replicated in caches within repositories. Therefore, when a user is
denied access to a view or the contents of a view is changed (a
location or a locatable is removed from the view), the authorization
server informs repository caches about the change. The same
notification mechanism as described in the previous section is
employed here.
4.4 The scalability of notification mechanism
The light-weight notification mechanism described in Section 4.1 seems
to be promising for dissemination of information in a large community
of clients distributed in the network. In this section the issue of
its scalability is further analyzed.
Figure 2: Notification Tree
The proposed solution for notification has the following structural
features:
- The notification dispatcher is a CORBA object which
represents a collection of smart proxies.
- The smart proxies are not CORBA objects and may be notified using
local method invocations.
- The collection of repository entity smart proxies in the client space
is represented in the repository by a single notification dispatcher
proxy. It saves a significant amount of memory and makes the space
occupied by the repository server independent of the number of
entities in the collection and the global number of existing proxies.
- A client may not be aware that a notification dispatcher is used. Its
activity is completely transparent to the client even from the
programming point of view.
- The number of notification dispatcher proxies in a repository server
is dependent only on the number of clients in the system which contain
entity smart proxies for entities in that server.
- The proposed notification mechanism is selective, which means that
only notification dispatchers that have registered smart proxies
corresponding to the changed entity in the repository are notified.
It is necessary to point out that the existence of a notification
dispatcher does not influence the scalability of the system in terms
of the number of observer clients.
This last issue can be addressed using replication. A client component
with a collection of smart proxies and a notification dispatcher could
be generalized as a notification component shown in
Figure 2. Scalability with respect to the number of clients
can then be achieved by organizing the system into a notification tree
built from notification components. Each smart proxy has registered
several notification dispatchers from the next layer up in the
tree. In the root node the repository of entities exists. In other
nodes only smart proxies are present. The proposed architecture
represents a distributed collection of entities which could be highly
available for a large number of clients despite geographic
distribution.
The propagation of a repository entity update is marked in
Figure 2. It is easy to see that the proposed solution has
similar scalability to notification based on multicast over IP
communication protocols that propagate messages down a multicast
tree. The advantage is that the notification tree does not require any
multicast protocol support.
In the context of this discussion it is necessary to compare the
proposed solution to the CORBA Event Service [15]
and the CORBA Notification Service [18].
The most important difference is that these services do not use a smart proxy
concept, so caching has to be solved in a separate way. The
notification component is similar to an event channel in the sense
that it separates the repository as a source of events from the
client. Filtering of events is provided by a notification component
through the attachment of an observer to any subset of fine-grain
entities. In the Event Service, to achieve selective notification, it
is necessary to define as many event channels as there are event
sources; in the case of ABng this will create an overwhelming numbers
of channels. However, the new Notification Service addresses this
problem through the powerful concept of the filter object. Further
comparison is very much dependent on implementation details which are
not defined by the OMG specifications. For instance, in Iona's
implementation of the Event Service based on the use of a multicast
protocol [8], an event producer does not even know the
number of notified consumers. This approach scales well but is based
on a proprietary protocol and is very difficult to extend from LAN to
WAN.
5 ABng system evaluation
The ABng software, implemented according to the design concepts
presented in this paper, was subject to intensive testing to determine
its performance and scalability. The system was implemented using
Orbix 2.2MT; the clients used in the tests were implemented using
OrbixWeb 2.01.
Performance results presented in this section were obtained in an
environment consisting of 15 Sun Ultra workstations and a Sun
Enterprise 3000 server, connected by two 10Mb Ethernet switches. The
ABng system components were running on the server. All other programs
were executed on separate workstations, so all CORBA invocations went
through the network. One particular system component was chosen for
the test. However, the results are representative of all of them as
they were implemented using the same C++ template. All tests were
repeated 100 times and average values were calculated. The
workstations were used for normal activities during the test, but were
rather lightly loaded.
Performance tests were carried out according
to typical scenarios occurring in a majority of ABng applications,
i.e. the retrieval of the current state of a set of entities in an

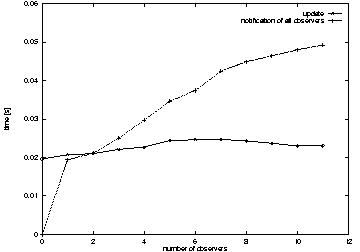

application bootstrap and the scalability of the notification
mechanism when the number of applications observing changes in these
entities increases. The implementation improvements proposed in the
paper - SPL and notification - were also evaluated.
5.1 Costs of accessing repository entities
There are two different ways of accessing entities in a repository: by
their values, using find_value and by their references, using
find. In order to access the fields of entities obtained using
find, subsequent get_descr methods have to be called. The
time spent in these calls executed in the OrbixWeb applet when the
number of entities in the repository increases is presented in

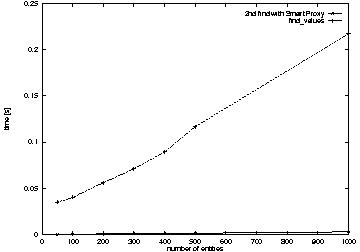

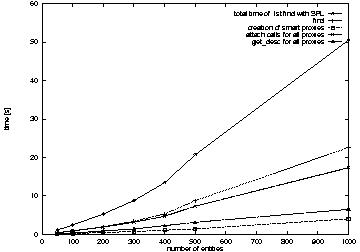

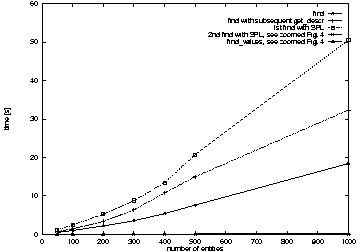

Figure 3 and Figure 4. All these calls
were invoked with a pattern that matched all entities in the
repository. The results show that accessing entities by reference is
several orders of magnitude more costly than accessing them by
value. Thus access by reference, in spite of its many superior
features, has to be used carefully and often combined with access by
value, as in the application presented in Section 6.
Figure 3: Performance comparison of different ways of accessing states of repository entities
Figure 4: Performance comparison of different ways of accessing states of
repository entities, zoomed
These figures also show the performance of subsequent invocations of
the find method when the SPL is used. The execution time of the
second find is almost negligible, as it happens
locally. Additionally, the first call with the SPL is about 40% more
costly than the combination of find without SPL and
get_descr calls. This difference is caused by the SPL construction
time.
5.2 Analysis of SPL construction cost
The process of constructing the SPL was divided into four basic steps:
- acquiring entity references by executing the find method,
- creating a smart proxy for each of the acquired references,
- registering the notification dispatcher for each of the references,
- retrieving entity descriptions by executing the get_descr method
for each smart proxy.
All of these steps, except the second one, include remote CORBA
invocations. The first step includes one remote invocation, the third
and fourth steps include as many remote invocations as there are
acquired references. In Figure 7, the total SPL construction
time as well as times spent in individual steps are presented.
Figure 5: Time consumption by basic steps of SPL construction
These results show that the majority of the time is used for remote
invocation. Most of these invocations could be eliminated by using the
find_and_attach repository method, which eliminates the
necessity of remote calls from the third and fourth steps. This
reduces the SPL construction time by 45% and requires construction of
a smart proxy for the repository. In this smart proxy a find
call is replaced by a find_and_attach call, with the observer
(parameter obs) initialized to the notification dispatcher. The
returned sequence of entity values (out parameter descriptions)
is used for loading the smart proxy caches.
5.3 Notification time
The method used to notify observers registered in the repository about
entity's changes are asynchronous oneway operations invoked successively on
the observers. The impact of a growing number of entity observers on
the notification time is presented in Figure 6.
Figure 6: Impact of growing number of observers on entity update and notification times
The results show that the time required to execute an update on
an entity is almost independent of the number of observers. The total
time necessary to inform all observers increases by roughly 3 [ms] for
each additional observer. This implies that in one second only 330
successive notification calls can be executed (obviously this number
depends on the performance of the server and its network
interfaces). Thus, in the case of the hardware used in our
configuration, the product of the number of observers (Obs) and the
average number of events per second (Evn) can be at most 330:
Obs * Evn <= 330
In the case of the ABng system, only the second source of events from
those described in Section 2.2, namely changes in location, can cause
an intensive stream of events. Each badge generates a new sighting
every 10 [s]; however, statistically less than 4% carry meaningful
information (every 4 minutes) - e.g. changes in location or clicking on
one of the badge buttons. Only such events are reported further to
observing applications. By applying the formula to these figures we
can expect that the system will scale up to 500 badges and more than
one hundred observer applications when a server with the processing
power of ours is used. Moreover, filtering of events through the use
of the view concept, presented earlier in the paper, further reduces
the stream of events.
To scale the system additionally it is necessary to apply: a
multicast protocol, the notification tree proposed in this paper, or a
combination of these two approaches. If a multicast protocol is used,
for instance by using Iona's implementation of the Event Service, the
number of observers in the formula Obs is equal to 1 and the
number of meaningful events can reach 330 per second. By adding the
notification component to the system this figure may be scaled
further. The only disadvantage to this approach is the delay
introduced by the notification component in the delivery of events to
its observers. Moreover, the notification component is necessary when
the system has to be extended geographically over a WAN, which is very
rarely configured for multicast.
6 A representative ABng application

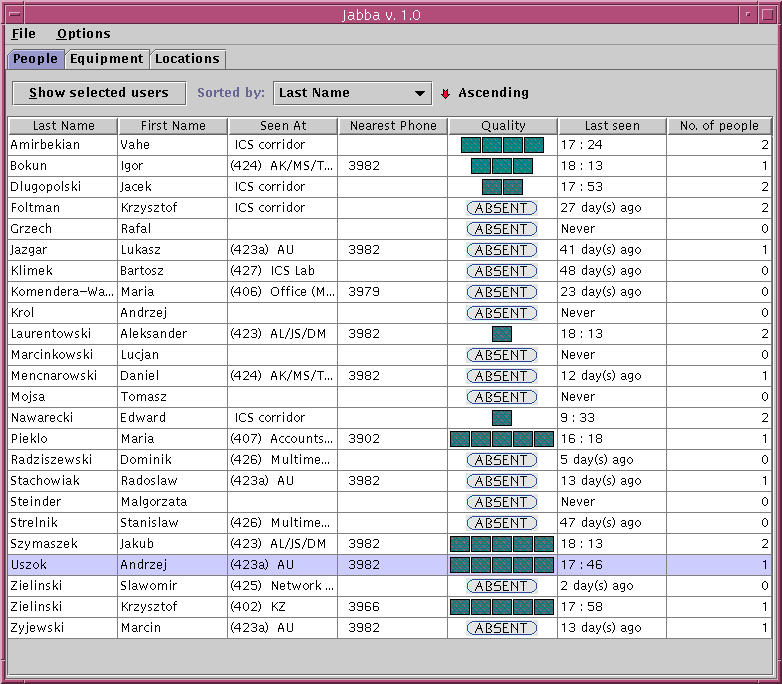

Figure 7: ABng viewer - a list of locatable users
The most basic ABng application is the ABng viewer, called Jabba. The
primary function of the viewer is to present a list of users with
their current locations (Figure 7). Similarly, a list of
equipment can be displayed. For every object, a number of its
attributes are presented (e.g. a user name, a user address, a location
name, location phone numbers, etc.). To perform these tasks the viewer
has to collect a lot of information which is distributed among various
repository servers. Additionally, information presented to the user
has to be refreshed after any of the relevant repository objects
change one or more attribute values. A change may reflect the current
location of a user or a piece of equipment or other attributes, such
as a user's address or a location description.
To work efficiently the viewer has to maintain a local copy of
relevant information, i.e. to cache values of object attributes and to
update values in caches after their originals are modified. In the
first, ANSA-based version of the Active Badge location system, the
viewer, called xab, was a very sophisticated and huge
application and most of the xab code was related to maintaining
caches. In the ABng viewer caching is implemented by the smart proxy
layer. This has three major advantages:
-
The code related to caching is completely separated from the
application code. The application is not responsible for updates to
the local copies of information.
-
The application code is not aware that any caching algorithm is
performed. It is completely transparent to the application. If the
application wants to obtain an attribute value after being informed
of a change (e.g. in order to redisplay it on the screen), it just
calls the operation on the remote object which holds that
attribute. However, the call does not actually generate a remote
call on the object; it is caught by the smart proxy layer and
served locally.
-
The smart proxy layer is universal and can be reused in any ABng
application.
In the bootstrap of Jabba, the hybrid approach to retrieving data
from repositories was employed. First, all entities are retrieved by
value, so their attributes can be very quickly displayed. In the
background, references to these entities are acquired and the SPL is
built. The construction of the SPL takes a considerable amount of
time, however it is transparent to the user. After the SPL is
constructed, it very efficiently supports the Jabba functionality.
7 Conclusion
Construction of scalable components in CORBA requires a solution to
the well-known trade-off between space and simplicity of navigation in
a large collection of objects, on the one hand, and system reaction
time on the other. Access by CORBA references provides a conceptually
clear and elegant model of access to objects in a distributed system,
but when their number increases it causes unacceptable access time. On
the contrary, access by value is much faster but sacrifices the
ability to easily navigate in a distributed system. Our solution is to
build hybrid components which combine both mechanisms. It is up to a
programmer to use them correctly. The performance tests presented in
the paper provide some hints as to correct use of the dual mechanisms.
A similar conclusion can be drawn with respect to the notification
mechanism proposed in this paper. It works very well after the initial
phase when the notification tree and smart proxies are already
established but this phase takes a substantial amount of time. If a
client needs fast response time, the initial values of entities should
be obtained by value initially, and the notification tree should be
constructed in parallel for future accesses and notification. The
design and implementation in this paper have proven their correctness
and scalability in a working ABng system.
The repository component may be further enhanced by using the POA
[17] approach, that provides new standard scalability
mechanisms. We intend to pursue this in the future.
8 Acknowledgments
This work is supported by Olivetti-Oracle Research Laboratory, Cambridge,
UK. We would like also to thank Joe Sventek for his thorough review and
suggestions of extensive improvements to this article.
References:
[1]
ANSAware 4.0 - Application Programmer's Manual,
APM Ltd., Cambridge UK (1992)
[2]
F. Bennett, A. Harter,
Low bandwidth infra-red networks and protocols for mobile communicating
devices,
Technical Report 93.5,
Olivetti Research Laboratory, Cambridge UK (1993)
[3]
K. Boher,
Middleware Isolates Business Logic,
Object Magazin, 11 (1997)
[4]
M. Franklin, S. Zdonik,
A Framework for Scalable Dissemination-Based Systems,
Proceedings of OOPSLA'97 (1997)
[5]
E. Gamma, R. Helm, R. Johnson, J. Vlissides,
Design Patterns,
Addison-Wesley (1994)
[6]
A. Harter, A. Hopper,
A distributed location system for the active office,
IEEE Network, Special Issue on Distributed Systems for Telecommunications, 8(1), January (1994)
[8]
Orbix 2.1 Programming Guide,
Iona Technologies Ltd. (1996)
[8]
OrbixTalk Programming Guide,
Iona Technologies Ltd. (1996)
[9]
Orbix Database Adapter Framework - White paper,
Iona Technologies Ltd. (1997)
[10]
Orbix+Object Store Adapter Programming Guide,
Iona Technologies Ltd. (1997)
[11]
OrbixWeb 3.0 Programming Guide,
Iona Technologies Ltd. (1997)
[12]
S. Lo,
The OmniORB2 version 2.5, User's Guide,
Olivetti & Oracle research Laboratory. (1998)
[13]
T. Mowbray, R. Malveau,
CORBA Design Patterns,
John Wiley and Sons, Inc (1997)
[14]
ObjectStore C++ API User Guide, Release 4.0.1,
Object Design, Inc. (1996)
[15]
CORBAServices: Common Object Services Specification,
Object Management Group, OMG Document formal/98-07-05 (1998)
[16]
CORBA Components, Joint Initial Submission by IONA Technologies et al.,
Object Management Group, OMG Document orbos/97-11-24 (1997)
[17]
Specification of the Portable Object Adapter (POA),
Object Management Group, OMG Document orbos/97-05-15 (1997)
[18]
Notification Service, Joint Revised Submission by NEC System Laboratory et al.,
Object Management Group, OMG Document telecom/98-06-15 (1998)
[19]
R. Orfali, D. Harkey, J. Edwards,
The Essential Distributed Objects Survival Guide,
John Wiley and Sons, Inc (1996)
[20]
P. Sridharan,
Java Beans, Developer's Resources,
Printice Hall (1997)
[21]
A. Tanenbaum,
Distributed Operating Systems,
Printice Hall (1995)
|
